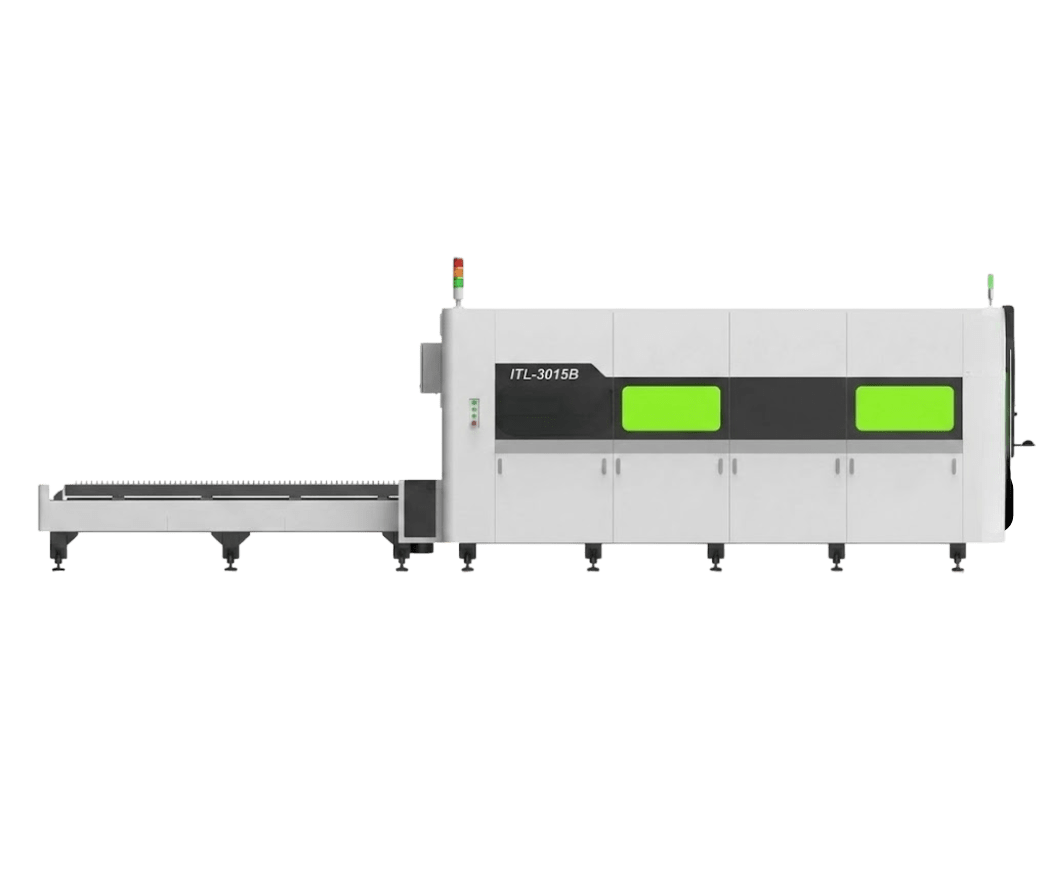

ITL-3015B Plate Metal Cutting Machine Manufacturer
Enclosed Exchange Table Fiber Laser Cutting Machine

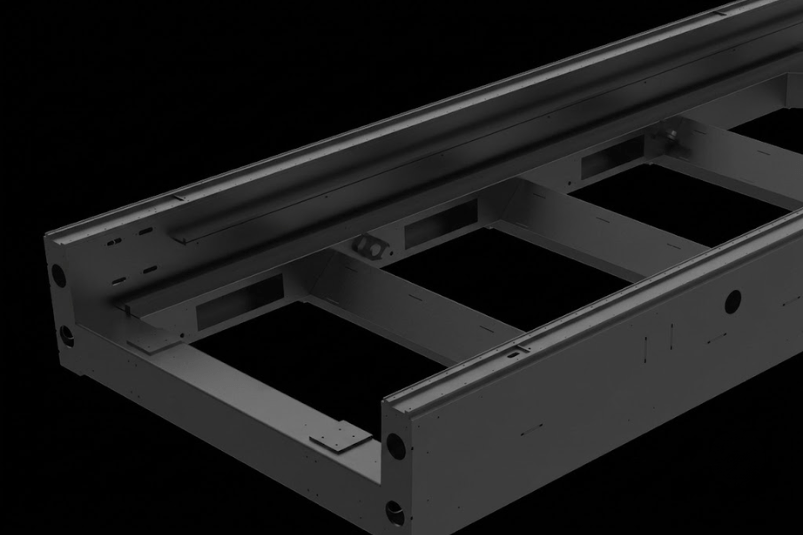

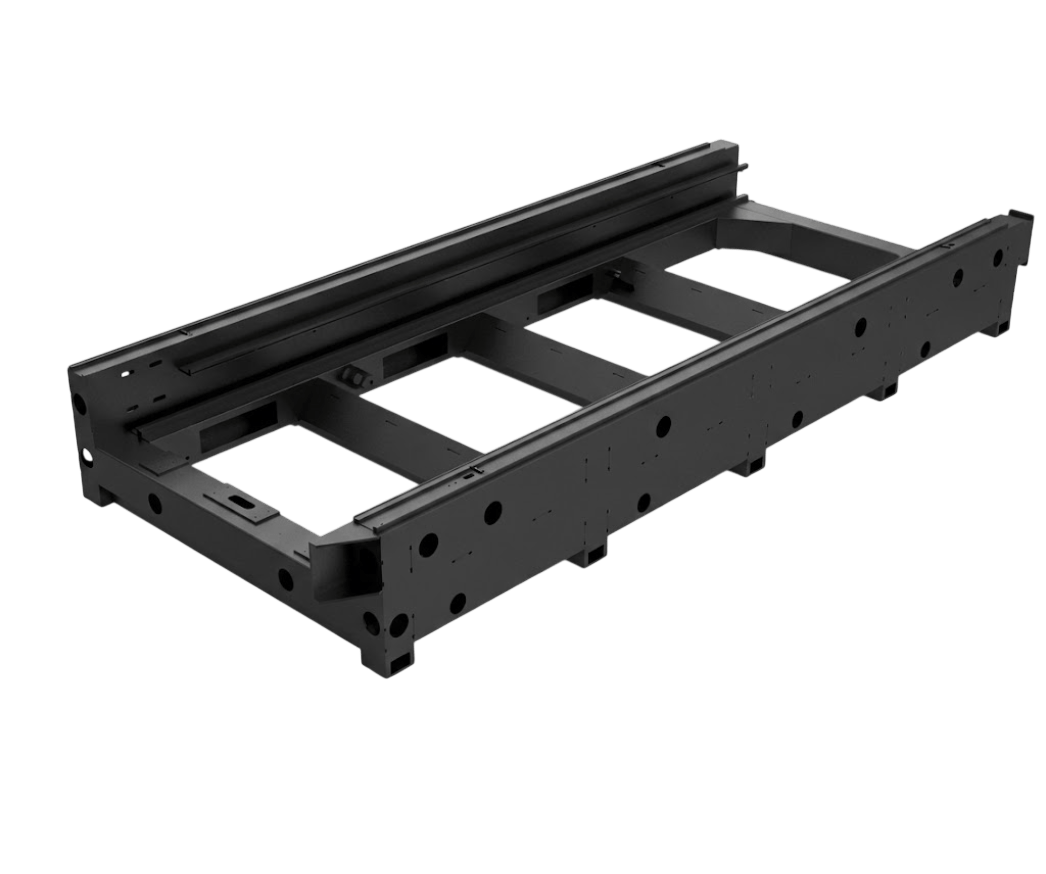

1. High-Strength Welded Bed Structure
The ITL-3015B features a heavy-duty welded steel bed for enhanced stability, reduced vibration, and precise cutting performance.
Key Advantage:
Key Advantage:
- Integrated steel bed structure delivers excellent machine stability.
- Optimized frame design improves cutting precision and smooth operation.
- High structural rigidity enhances performance during high-speed cutting.
- Strong bed construction resists distortion under heavy workloads.
- Designed for continuous production with dependable cutting accuracy.
- Durable machine structure reduces maintenance and extends service life.

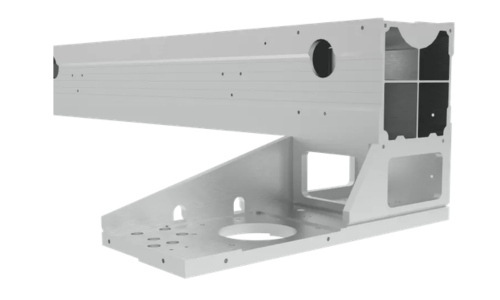

2. High-Strength Aluminum Crossbeam
The ITL-3015B aluminum crossbeam delivers lightweight strength, stable motion, and accurate cutting performance.
Key Advantage:
Key Advantage:
- Premium aluminum crossbeam provides excellent strength with reduced weight.
- Optimized design supports faster movement and higher cutting efficiency.
- High rigidity improves positioning accuracy and cutting quality.
- Lightweight construction reduces machine load and component wear.
- Excellent thermal stability maintains consistent cutting performance.
- Corrosion-resistant material ensures long-lasting industrial durability.

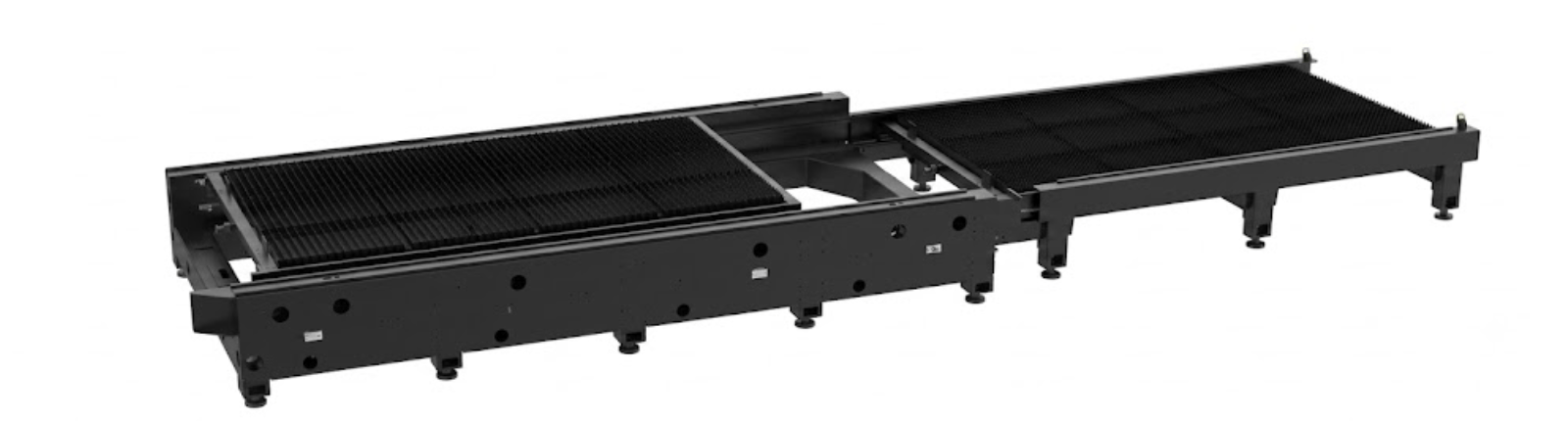

3. Dual-Drive Exchange Platform Benefits
The ITL-3015B dual-drive switching platform enables synchronized loading and cutting, eliminating downtime and boosting production efficiency by over 50%.
Key Advantage:
- The dual-drive switching platform enables synchronized loading and cutting operations.
- Eliminates idle time and improves overall production efficiency.
- Independent dual motors ensure smooth and stable platform movement.
- Enhances cutting speed and continuous workflow performance.
- Reduces vibration for better precision and cutting accuracy.
- Designed for high-volume industrial manufacturing applications.
4. Follow-Up Zoned Extraction Benefits
The ITL-3015B features an intelligent zoned extraction system that activates only the cutting area, improving fume removal and reducing energy consumption.
Key Advantage:
- Smart extraction nozzles follow the cutting head position automatically.
- Activates only the working zone for efficient fume removal.
- Improves suction efficiency at the cutting point for better safety.
- Reduces overall airflow requirements and energy consumption.
- Minimizes noise levels during machine operation.
- Ensures cleaner working environment with effective dust control.
Specifications of Plate Metal Cutting machine ITL-3015B
| Machine model | 3015B | 4020B | 6025B |
| Work area | 3048mm*1524mm | 4064mm*2032mm | 6096mm*2540mm |
| Max speed | 100m/min | 100m/min | 100m/min |
| Acceleration | 1.5G | 1.5G | 1.5G |
| Z-axis travel | 320mm | 320mm | 320mm |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Table load bearing weight | 1000kg | 1600kg | 3000kg |
| Adaptation power | 1500W-12000W | 1500W-12000W | 1500W-12000W |
Features of Plate Metal Cutting machine ITL-3015B
- Efficient swapping platform design for continuous production.
- Fully enclosed safety structure ensures operator protection.
- High-power fiber laser system for precise cutting performance.
- Intelligent dust extraction & cooling for clean and stable operation.
Applications of Plate Metal Cutting machine ITL-3015B
- Steel structure fabrication for construction and engineering projects.
- Machinery parts and heavy equipment production industries.
- HVAC ducting, ventilation systems, and metal fittings manufacturing.
- Agricultural and construction machinery component fabrication.
Why Choose Plate Metal Cutting machine ITL-3015B ?
- High-rigidity machine structure ensures long-term cutting accuracy.
- Dual exchange platform enables continuous production efficiency.
- Enhanced safety system with environmental protection design.
- Multi-material cutting capability for versatile applications.
- Smart operation with improved energy efficiency.
- Comprehensive after-sales support with global service coverage.
- High ROI solution designed for modern industrial workshops.
get in touch
Send Us Your Requirement
FAQs
The ITL-3015B Plate Metal Cutting Machine comes with a 2–3 year warranty on different laser sources. We provide lifetime free service support, while customers only need to cover the cost of spare parts and shipping for out-of-warranty requirements.
We provide free training and lifetime technical support for all customers. On-site installation and 24/7 online installation guidance are also available to ensure smooth setup and operation.
Please share the materials, thickness, and your production requirements. Our sales team will recommend the most suitable machine configuration and provide customized solutions for your application needs.
OEM and ODM services are welcome. New Hope provides complete solutions for automation, laser cutting, welding, cleaning, and customized machines to meet customer requirements. Our technical team delivers efficient, stable, and cost-effective solutions for modern industries.
Yes, we support our agents with complete training, installation guidance, after-sales service, and technical support to ensure proper machine operation at the end-user’s site.
