Premium ITL-12020A Plate Cutting Machine Manufacturer
Top Advantages of ITL-12020A Plate Metal Cutting Machine

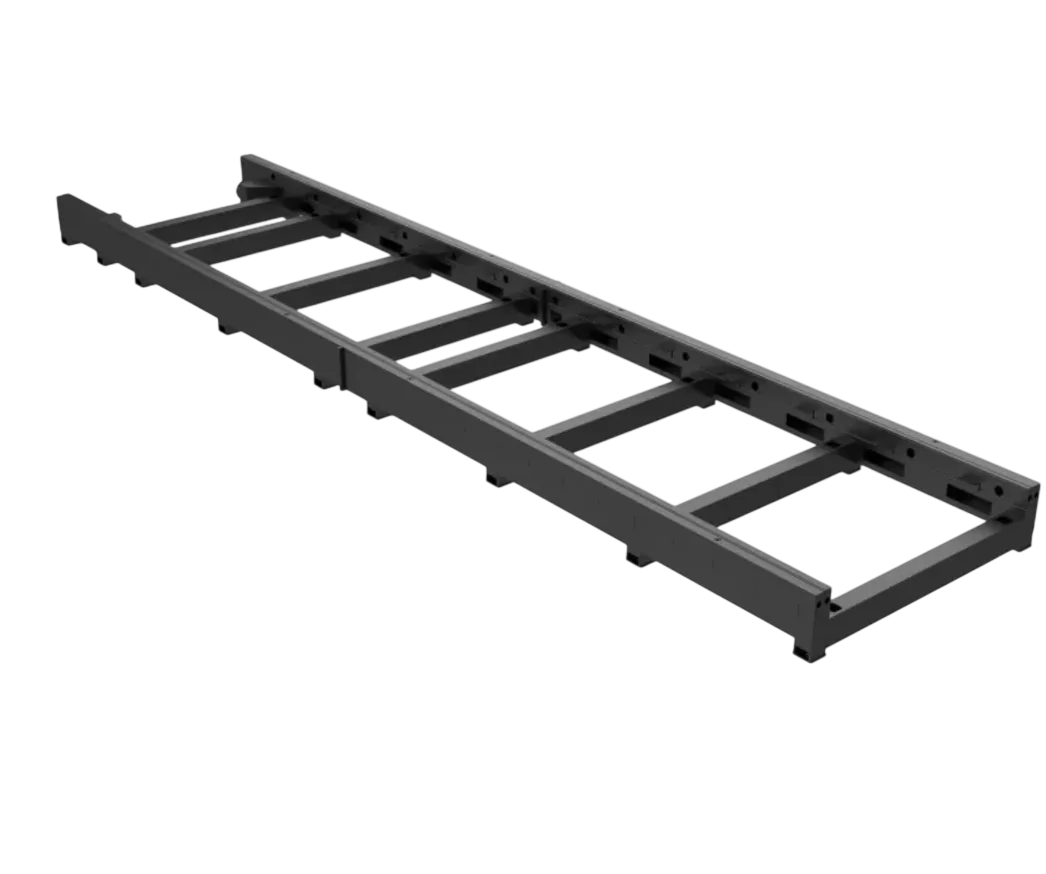

1.Premium Heavy-Duty Bed Structure
The ITL-12020A is built with a high-strength welded plate bed that offers exceptional rigidity and durability. Its stable structure ensures smooth operation, precise cutting, and reliable long-term performance.
Key Advantage:
Key Advantage:
- Heavy-duty welded plate bed provides exceptional structural strength and rigidity.
- Minimizes vibration to ensure precise cutting of large metal workpieces.
- Integral welded construction enhances load-bearing capacity for heavy-duty applications.
- Maintains excellent stability during continuous high-power laser cutting.
- Reduces thermal deformation for consistent long-term machining accuracy.
- Designed for reliable performance when processing oversized metal sheets.
2.Heavy-Duty & High-Rigidity Machine Crossbeam
The ITL-12020A is equipped with a premium aviation-grade aluminum crossbeam that combines lightweight performance with exceptional rigidity. It delivers smooth motion, improved cutting accuracy, and reliable stability for demanding industrial applications.
Key Advantage:
Key Advantage:
- High-strength aviation-grade aluminum ensures exceptional durability.
- Lightweight crossbeam enables faster movement and improved cutting efficiency.
- High rigidity minimizes vibration for precise and stable cutting.
- Reduces mechanical load to improve machine performance and longevity.
- Excellent thermal stability maintains consistent cutting accuracy.
- Engineered for reliable performance in continuous industrial applications.

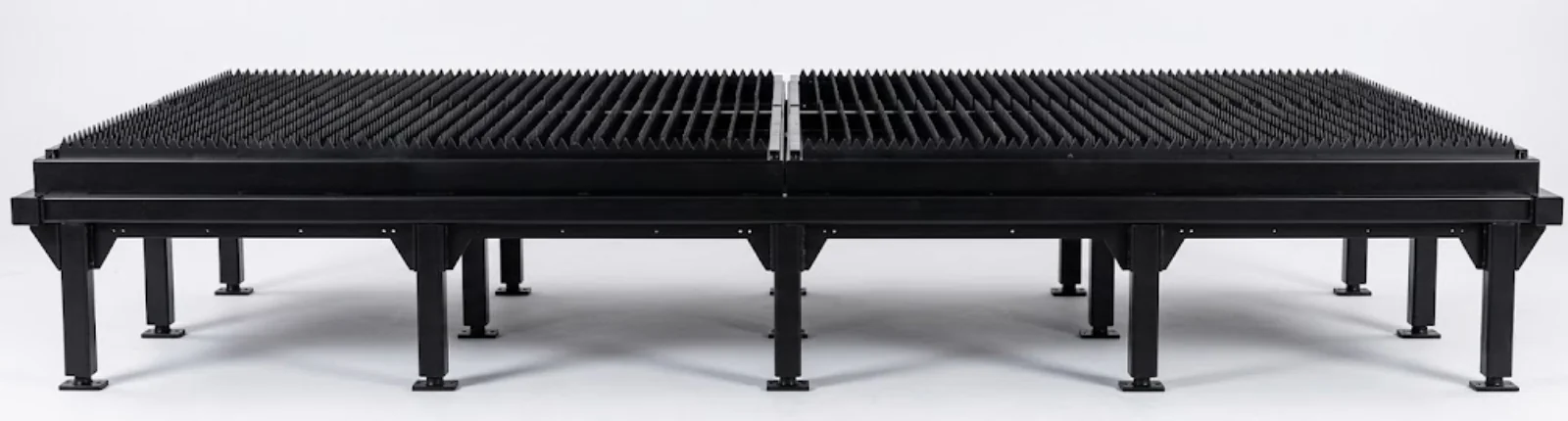

3. Independent Floor-Standing Worktable
The ITL-12020A features an independent floor-standing worktable that provides excellent stability and minimizes vibration. Its robust design ensures accurate cutting and reliable industrial performance.
Key Advantage:
- Independent worktable design improves machine stability and cutting accuracy.
- Reduces vibration transfer for smooth and precise cutting performance.
- Easy installation and leveling on different industrial workshop floors.
- Convenient material loading and unloading for increased productivity.
- Simplifies machine maintenance and daily operation.
- Delivers reliable performance during continuous industrial production.
The independent floor-standing worktable of the ITL-12020A enhances stability, improves cutting precision, and ensures efficient industrial operation.

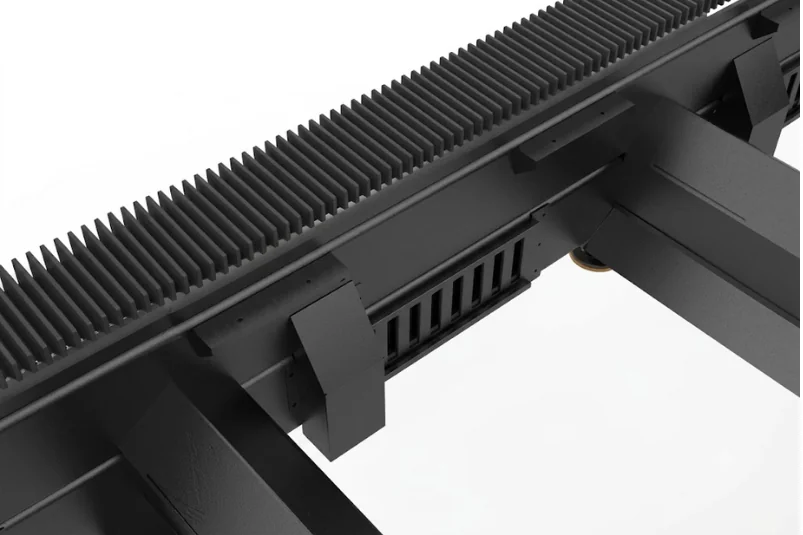

4. Intelligent Dust Removal System
The ITL-12020A features an intelligent dust removal system that efficiently extracts smoke and dust. It ensures a cleaner workspace and consistent cutting performance.
Key Advantage:
Key Advantage:
- Efficiently removes smoke, dust, and cutting debris during operation.
- Improves workplace cleanliness and operator safety.
- Targeted dust extraction enhances collection efficiency.
- Reduces dust accumulation to protect machine components.
- Minimizes maintenance requirements and extends equipment life.
- Ensures consistent cutting quality during continuous production.
Specifications of Plate Metal Cutting machine ITL-12020A
| Machine model | 12020A | 12025A | 14032A |
| Work area | 12000mm*2000mm | 12000mm*2500mm | 14000mm*3200mm |
| Max speed | 100m/min | 100m/min | 100m/min |
| Acceleration | 1.5G | 1.5G | 1.5G |
| Z-axis travel | 150mm | 150mm | 150mm |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Table load bearing weight | 15000kg | 15300kg | 22800Kg |
| Adaptation power | 6000W-60000W | 6000W-60000W | 6000W-60000W |
Features of Plate Metal Cutting machine ITL-12020A
- Heavy-duty welded steel machine structure.
- High-speed and precision fiber laser cutting
- Automatic focusing laser cutting head.
- Efficient dust removal system.
- Low maintenance and energy-efficient operation.
- Aviation-grade aluminum crossbeam.
Applications of Plate Metal Cutting machine ITL-12020A
- Sheet metal fabrication.
- Industrial equipment production.
- OEM metal component manufacturing.
- Construction machinery.
- Engineering workshops.
- Electrical panel fabrication.
Why Choose Plate Metal Cutting machine ITL-12020A ?
- Specialized in research, development, production, and sales.
- Strict quality control ensures reliable performance and durability.
- Manufactured to international quality standards with certified processes.
- Customized cutting solutions designed for diverse industrial applications.
- Advanced technology delivers precise, efficient, and dependable performance.
- Committed to customer satisfaction through quality products and reliable support.
get in touch
Send Us Your Requirement
FAQs
The ITL-12020A Plate Metal Cutting Machine is backed by a 2–3 year warranty on selected laser source components. We also provide lifetime technical support, with customers only responsible for the cost of replacement parts and shipping for out-of-warranty services.
Free training and lifetime technical support are available for all customers. We also provide on-site installation and 24/7 online installation guidance to ensure smooth machine setup and operation.
Please share the material type, thickness, and your production requirements. Our experts will recommend the most suitable Plate Metal Cutting Machine with the right configuration and customized solution for your application.
We offer OEM, ODM, and customized solutions to meet your specific production requirements. Our team provides tailored laser cutting, welding, cleaning, and automation solutions, delivering efficient, reliable, and cost-effective machines backed by expert technical support.
Yes, we welcome local dealers and distributors. We provide comprehensive training, installation assistance, after-sales service, and ongoing technical support to ensure successful machine operation and customer satisfaction.
