Metal Pipe Cutting Machine ITL-6024T2D CNC Fiber Laser Cutter
Key Advantages of Metal Pipe Cutting Machine ITL-6024T2D

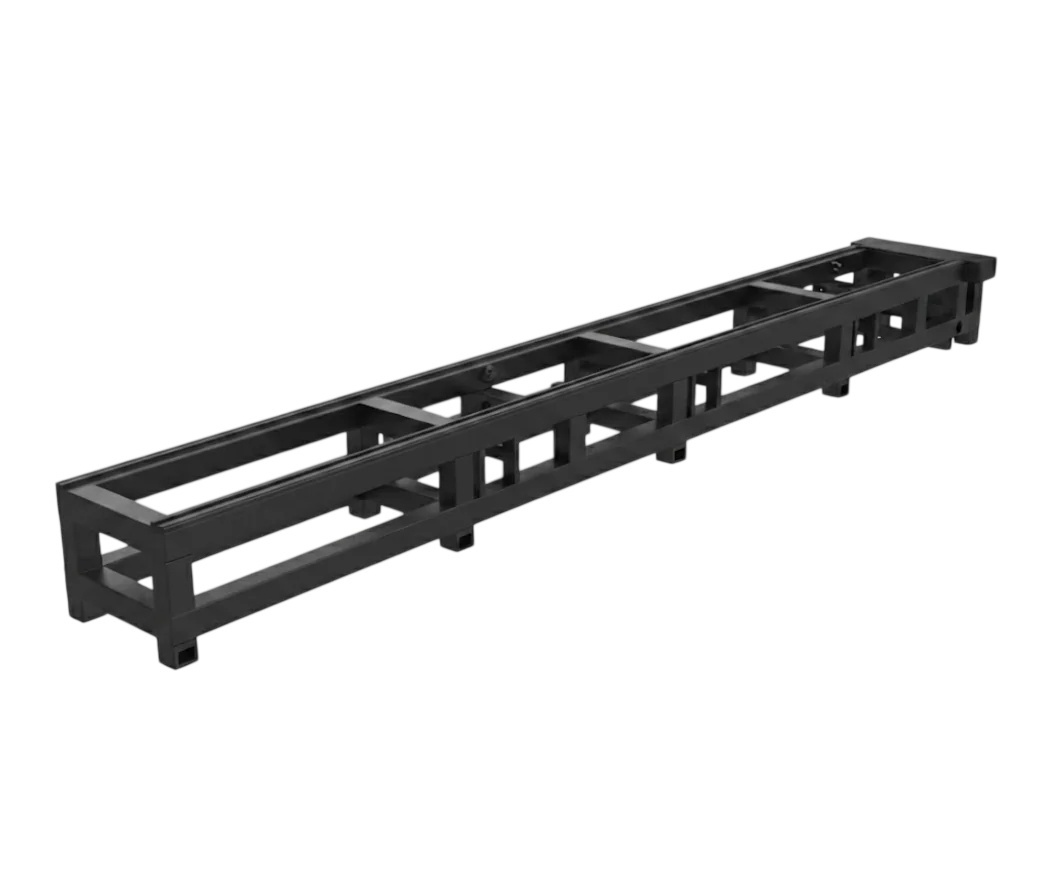

1.High-Rigidity Machine Frame
The heavy-duty machine frame is built with high-strength materials and precision engineering to provide smooth operation, dependable accuracy, and excellent structural stability during production.
Key Advantages:
Key Advantages:
- Heavy-duty frame supports continuous operation.
- Optimized structure improves machine durability.
- Superior rigidity maintains cutting precision.
- Stable platform enhances machining performance.
- Precision manufacturing ensures reliable operation.
2.Automatic Pipe Support System
The Automatic Pipe Support System of the Metal Pipe Cutting Machine ITL-6024T2D automatically monitors tube surfaces and adjusts the laser head to maintain precise focus, ensuring stable and accurate cutting across various metal pipe profiles.
Key Advantages:
- Supports round, square, and structural steel profiles.
- Automatically maintains accurate laser focus.
- Compensates for tube bending and ovality.
- Reduces manual calibration and setup time.
- Improves cutting quality and production efficiency.
The Metal Pipe Cutting Machine ITL-6024T2D combines intelligent pipe support with automatic focus adjustment to deliver reliable accuracy, stable performance, and efficient processing for a wide range of metal tube applications.

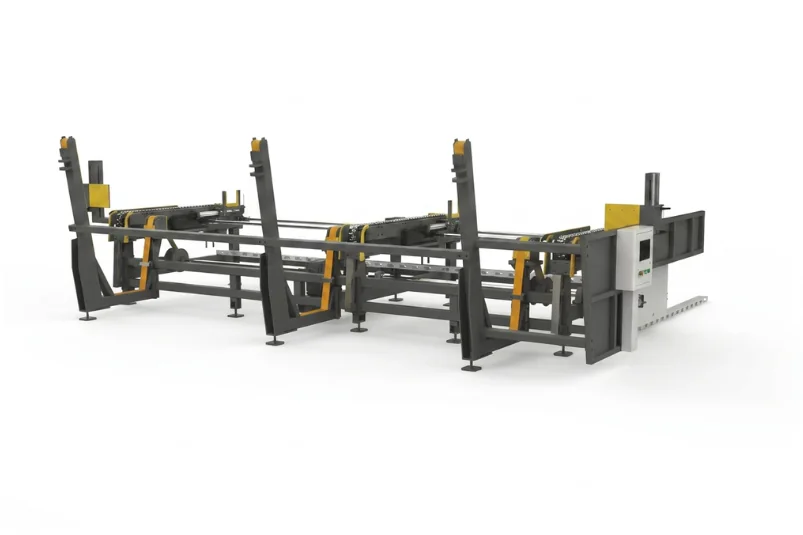

3. Automatic Material Feeding System
The Automatic Material Feeding System of the Metal Pipe Cutting Machine ITL-6024T2D enables fully automated loading, conveying, positioning, and cutting of metal pipes, improving production efficiency while ensuring accurate and stable material handling.
Key Advantages:
- Fully automatic loading and feeding process.
- Eliminates manual intervention during production.
- Compatible with multiple pipe sizes and specifications.
- High feeding accuracy for consistent cutting results.
- Reduces labor costs and manual handling errors.
- Increases productivity for continuous production.
- Ensures stable and reliable material positioning.
The Metal Pipe Cutting Machine ITL-6024T2D features an intelligent Automatic Material Feeding System that delivers efficient, accurate, and continuous pipe processing for high-volume industrial manufacturing.
Specifications of Metal Pipe Cutting machine ITL-6024T2D
| Machine model | 6024T2 | 6036T2 | 12036T2 |
| Round tube diameter range | 10-230mm | 25-350mm | 25-350mm |
| Square tube side length range | 10-230mm | 25-350mm | 25-350mm |
| Maximum length of pipe | 6300mm | 6300mm | 12300mm |
| Maximum weight of a single pipe | 300Kg | 660kg | 1300kg |
| Chuck maximum speed | 100r/min | 75r/min | 75r/min |
| Max acceleration | 1.5G | 1.5G | 1.0G |
| Positioning accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Adaptation power | 1500W-6000W | 1500W-6000W | 1500W-6000W |
Features of Metal Pipe Cutting machine ITL-6024T2D
- High-speed fiber laser cutting for maximum productivity.
- Intelligent pipe support system maintains stable cutting accuracy.
- Advanced CNC control system for accurate and repeatable processing.
- Reduces material waste while improving production efficiency.
- Supports round, square, rectangular, oval, and special-shape
- Automatic laser head adjustment for consistent focus.
Applications of Metal Pipe Cutting machine ITL-6024T2D
- Agricultural machinery manufacturing
- Stainless steel and carbon steel pipe processing
- Electrical cabinet and enclosure manufacturing
- Engineering and heavy fabrication industries
- Automotive and transportation components
- Construction and structural steel fabrication
Why Choose Metal Pipe Cutting machine ITL-6024T2D?
get in touch
Send Us Your Requirement
FAQs
The Metal Pipe Cutting Machine ITL-6024T2D is backed by a 2–3 year warranty, depending on the laser source configuration. We also provide lifetime technical support to ensure reliable machine performance. After the warranty period, customers only need to pay for replacement parts and express shipping, while our technical service remains free.
We provide lifetime overseas technical support for the Metal Pipe Cutting Machine ITL-6024T2D. Our team offers remote troubleshooting, video guidance, and online assistance. If needed, on-site service can also be arranged through our authorized technicians.
Share your material type and job requirements, and we will suggest the best machine with suitable configurations and solutions.
We support OEM and ODM services. New Hope offers automation, laser cutting, welding, cleaning, and customized machine solutions. With support from our technical team and academic partners, we ensure efficient, stable, and cost-saving results.
We ensure full assistance for our agents, including training, installation, after-sales support, and technical guidance at customer sites.
